How To
Download
StatsREF.zip from …. (www.digitalrus.ru)
- Unzip
archive in ../Plugins Mixw (files StatsREF.dll and ref.mc )
- Run Mixw

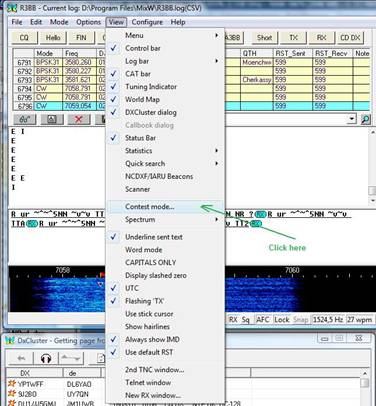

- Menu View
- Contest mode
1.

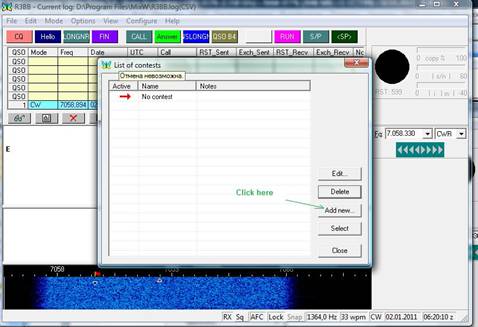

Add
French HF Championship
2.

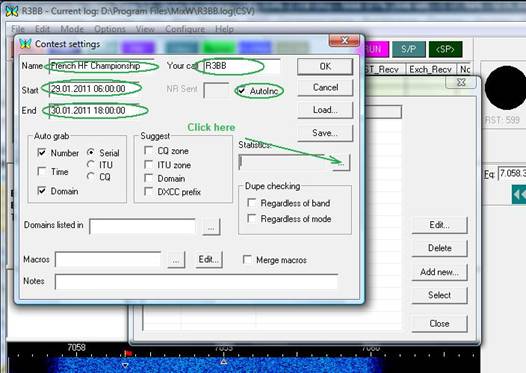

To field Name write French HF
Championship
Into field Start enter date
and time of the beginning contest (for testing the program have in view of,
that the beginning contest should be not later current time!!!)
In floor End date and time of the termination contest
In floor CALL yours CALL
If you the radio fan from France - that remove tick Autoinc and into field NR Sent enter your designation of
department or TOM/DOM
Then press the button with three points in floor
Statistic

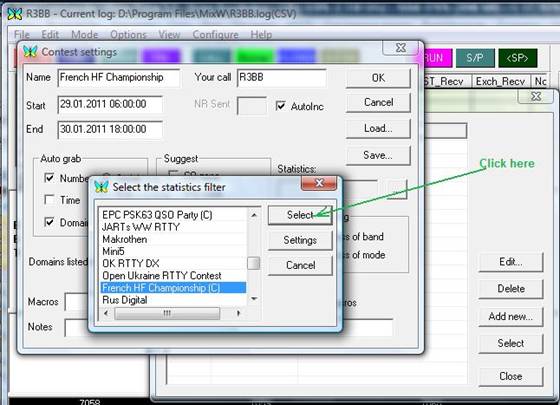

3. In the appeared
window choose French HF Championship and
press Select

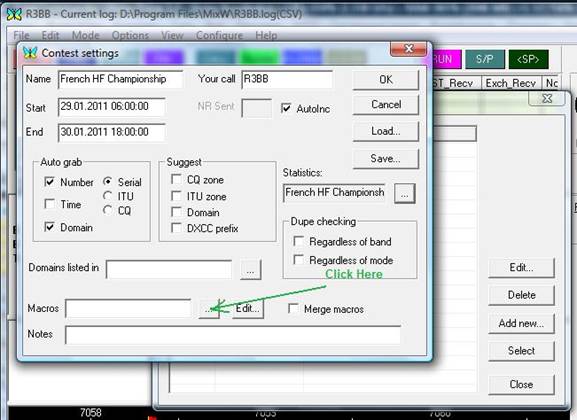

4.
For
connection of in advance prepared file of macros press the button with three
points in floor Macros
5.

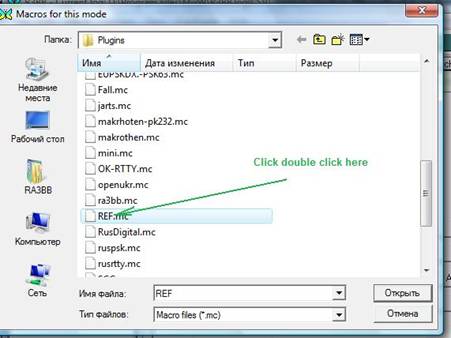

In the appeared dialogue window press double
click REF.mc

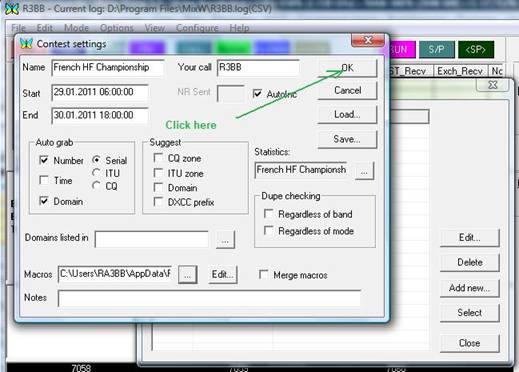

6. Adjustment is
ended. Press ОК for an output in a window of activation contest

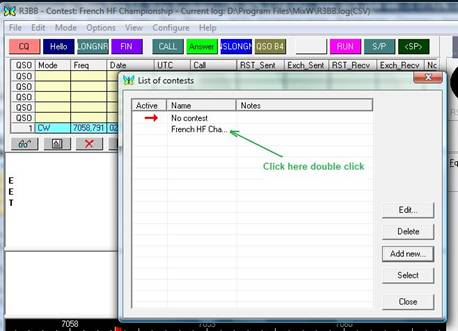

7.

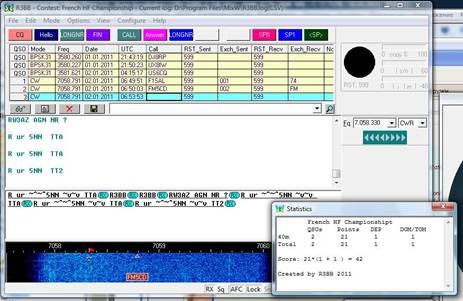

Here
it is clear from figure - after activation we begin work in the test
8.

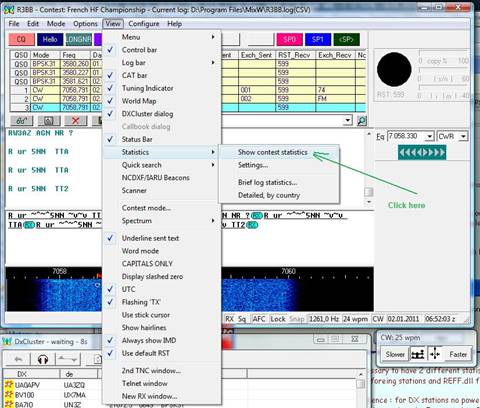

For
convenience of work in contest choose
statistics for data contest
9.
The operating
procedure in the test
Action buttons being the right half concern to work on
RUN, left - on search
Work on Enter is organized
For activation of work on Enter on RUN - it is
necessary to press the button <SP> (F12) for versions 2.20 and above, and
for version 2.19 button SP0 (F10), thus in heading of basic window MixW there will be an inscription <RUN>
If field CALL empty pressing Enter will cause work макро F1 - CQ
If in floor CALL is call pressing Enter will cause
work макро F2 - the answer. And the cursor will
move to field Exch_Recv.
If field Exch_Recv empty
pressing Enter again will cause work макро the answer.
If field Exch_Recv contains
control number pressing Enter will cause macros Fin, i.e. preservation QSO and transfer QRZ? Thus the
cursor will move to field CALL.
If to enter a sign on a question into field CALL and
to press Enter it will cause макро about repetition CALL.
If to enter a sign on a question into field Exch_Recv and to press Enter it will cause macros inquiry in the
correspondent of repetition of control number.
For activation of work on Enter on search (if you beat
in mode RUN) - it is necessary to press the button <SP> (F12) for
versions 2.20 and above, and for version 2.19 button SP1 (F11), thus in heading of window MixW the inscription <RUN> will disappear.
If field CALL contains call pressing Enter will cause macros CALL (F5) and the cursor will
move to field Exch_Recv. If to you have not answered, repeated pressing Enter again will cause macros CALL.
If you have not accepted control
number introduction of a sign on a question in field Exch_Recv
and pressing Enter will cause macros about repetition of control number.
If field Exch_Recv
contains control number pressing Enter will cause macros Answer F6 which will transfer the correspondent your
control number and will keep QSO. If correspondent not has
accepted control number it is necessary to take advantage click buttons F7 of
repetition of control number.
Enjoy

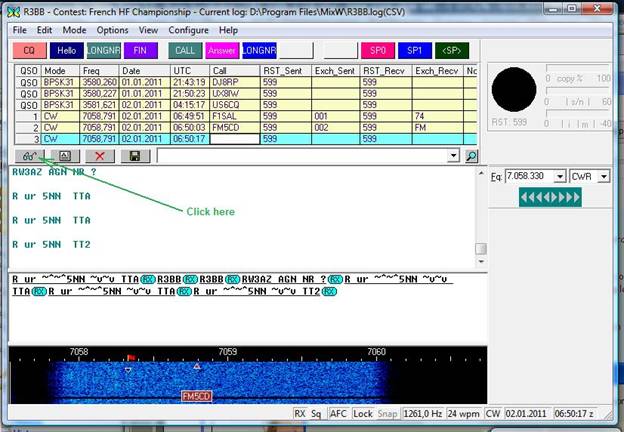

10. Create log file in format Cabrillo

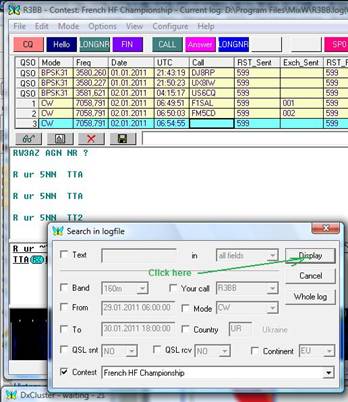

11. In the appeared window remove a tick at field Text. Establish a tick
at field Contest. Choose from the
list contest French HF Championship and press button Display.

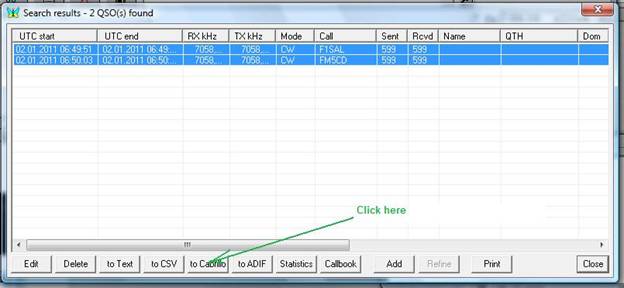

12.
Allocate
all QSO and on press the
button to Cabrillo

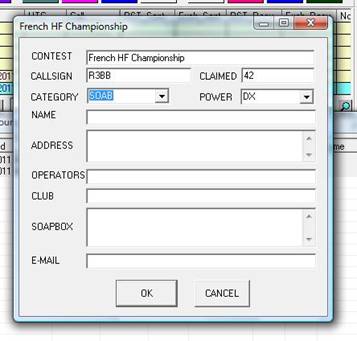

21. Fill the appeared form. In floor CATEGORY choose
your class of work. If you the Frenchman that in floor POWER choose used capacity.
If you from other country leave a field without changes. After filling a field press OK!
The file <yours call>.cbr for version
2.19 will be in root folder MixW.
For version 2.20 and you at installation will be by default
For Windows 7
C: \Users \ <User> \AppData \Roaming \MixW
For Windows XP
C: \Documents
and Setting \ <User> \Application Data \MixW
22. For an output to press Close
For an output
from a mode of competitions to press View-> Contest mode and double click to
press on No contest
Yours faithfully
Victor N. Kosobokov (R3BB) 73 !
