How To

       Download StatsAllAsian.zip from …. (www.digitalrus.ru)

  1. To unpack a file StatsAllAsian.dll from archive StatsAllAsian.zip  in a folder Plugins .
  2. For version MixW 2.19 folder Plugins settles in root folders MixW.

For version 2.20 and you at installation will be by default

For Windows 7

C: \Users \ <User> \AppData \Roaming \MixW
For Windows XP

C: \Documents and Setting \ <User> \Application Data \MixW

  1. To unpack a file aa-dx-cw.mc from archive StatsAllAsian.zip  in a folder MixW\Plugins.
  2. Run Mixw

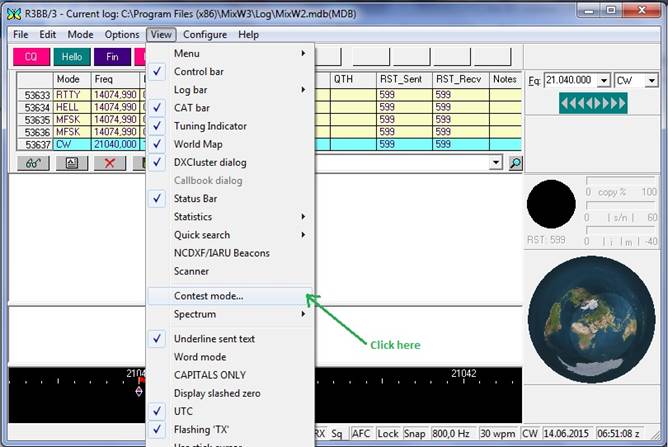

  3. Menu View - Contest mode

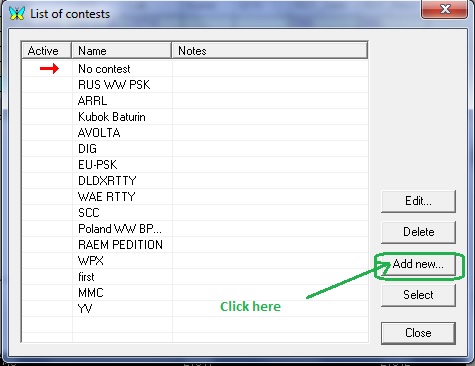

6.       Add AA-DX-CW

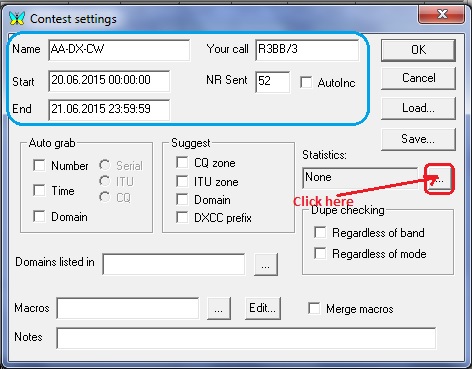

7.     To field Name write AA-DX-CW

Into field Start enter date and time of the beginning contest (for testing the program have in view of, that the beginning contest should be not later current time!!!)

In floor End date and time of the termination contest

In floor CALL yours CALL

Then press the button with three points in floor Statistic

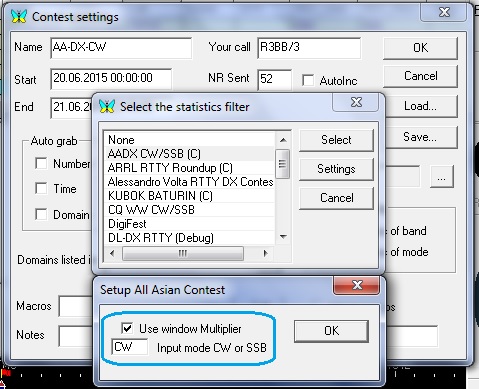

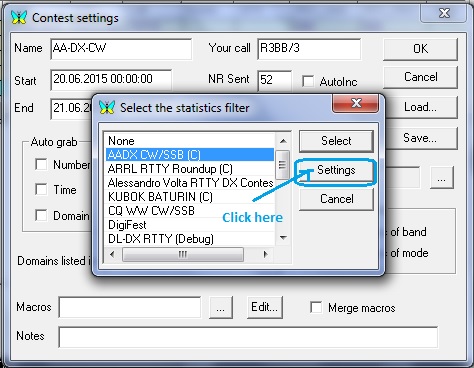

8.      In the appeared window choose AADX CW/SSB ©  and press Setting





9.       In the appeared window Setup All Asian Contest input in field Input mode – input mode.





Click OK.

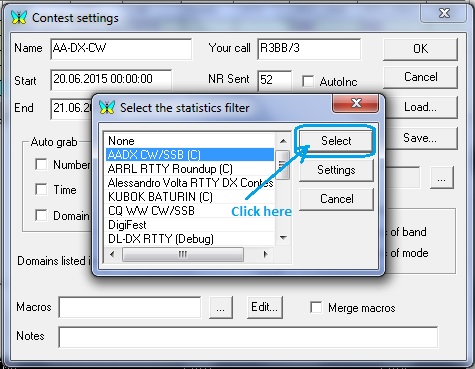

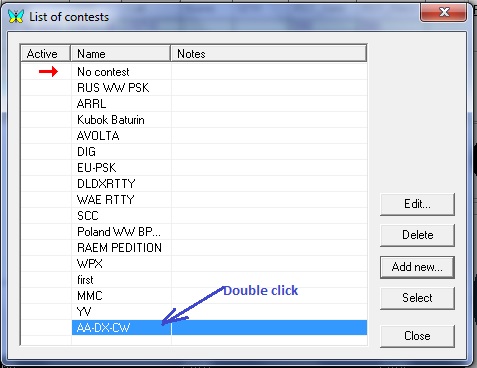

10.   In the appeared window press button Select

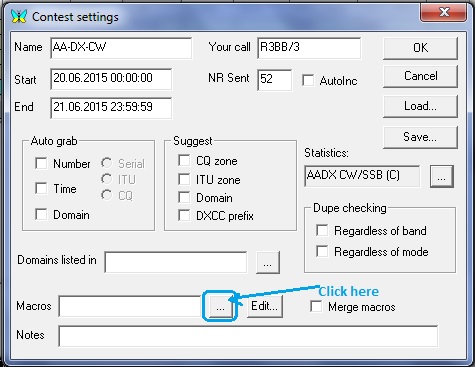

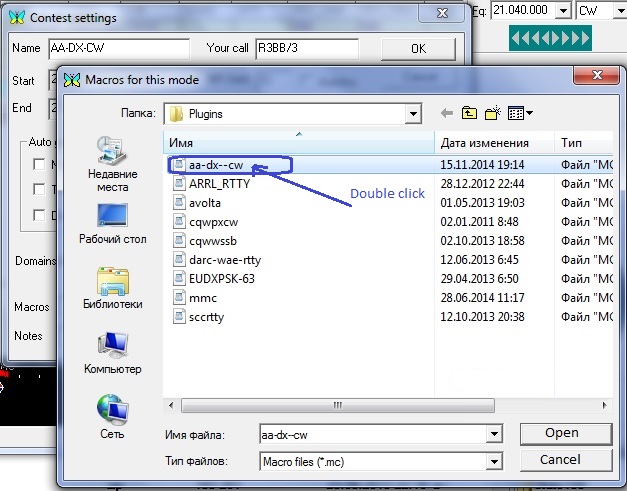

11.    For connection of in advance prepared file of macros press the button with three points in floor Macros









12.    In the appeared dialogue window press double click aa-dx-cw.mc

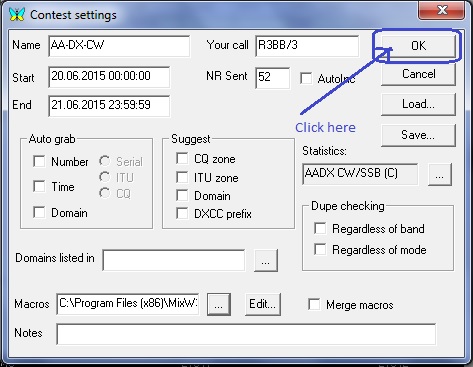

13.   Adjustment is ended. Press ОК for an output in a window of activation contest

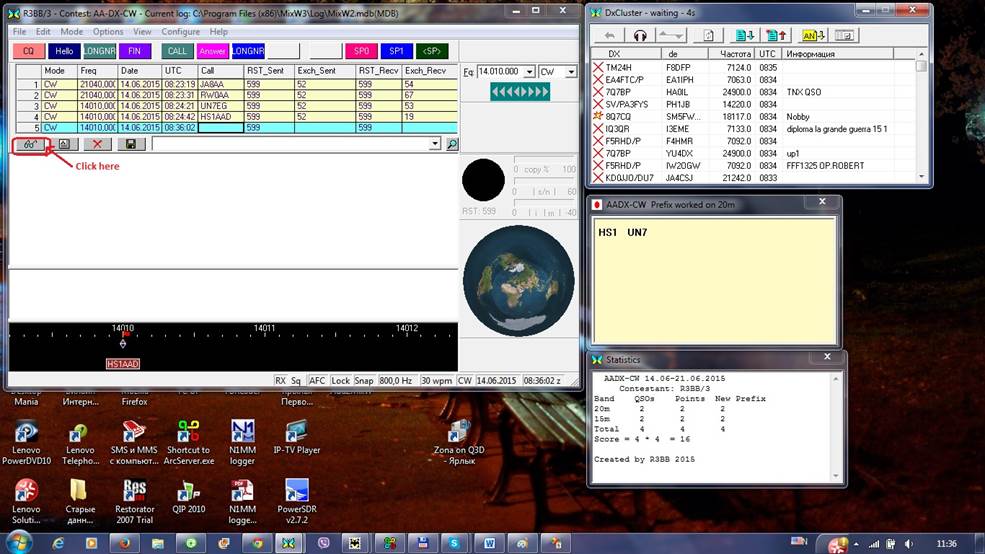

14.   Here it is clear from figure - after activation we begin work in the test

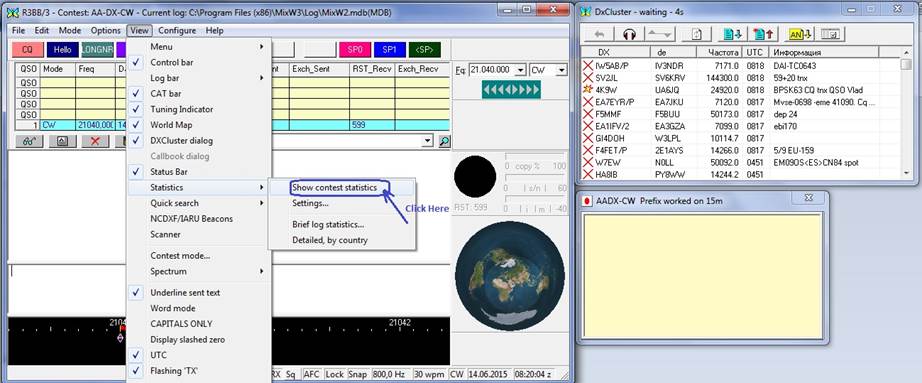

15.   For convenience of work in contest choose statistics for data contest







16.  The operating procedure in the test

Action buttons being the right half concern to work on RUN, left - on search

Work on Enter is organized



For activation of work on Enter on RUN - it is necessary to press the button <SP> (F12) for versions 2.20 and above, and for version 2.19 button SP0 (F10), thus in heading of basic window MixW there will be an inscription <RUN>

If field CALL empty pressing Enter will cause work макро F1 -  CQ

If in floor CALL is call pressing Enter will cause work макро F2 -  the answer. And the cursor will move to field Exch_Recv.

If field Exch_Recv empty pressing Enter again will cause work макро the answer.

If field Exch_Recv contains control number pressing Enter will cause macros Fin, i.e. preservation QSO and transfer QRZ? Thus the cursor will move to field CALL.

If to enter a sign on a question into field CALL and to press Enter it will cause макро about repetition CALL.

If to enter a sign on a question into field Exch_Recv and to press Enter it will cause macros inquiry in the correspondent of repetition of control number.



For activation of work on Enter on search (if you beat in mode RUN) - it is necessary to press the button <SP> (F12) for versions 2.20 and above, and for version 2.19 button SP1 (F11), thus in heading of window MixW the inscription <RUN> will disappear.

If field CALL contains call pressing Enter will cause macros CALL (F5) and the cursor will move to field Exch_Recv. If to you have not answered, repeated pressing Enter again will cause macros CALL.

If you have not accepted control number introduction of a sign on a question in field Exch_Recv and pressing Enter will cause macros about repetition of control number.

If field Exch_Recv contains control number pressing Enter will cause macros Answer F6 which will transfer the correspondent your control number and will keep QSO. If  correspondent  not  has accepted control number it is necessary to take advantage click buttons F7 of repetition of control number.



Enjoy



17.  Create log file in format Cabrillo

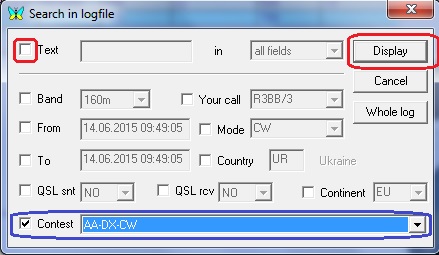

18.  In the appeared window remove a tick at field Text. Establish a tick at field Contest. Choose from the list contest UBA-CW and press button Display.

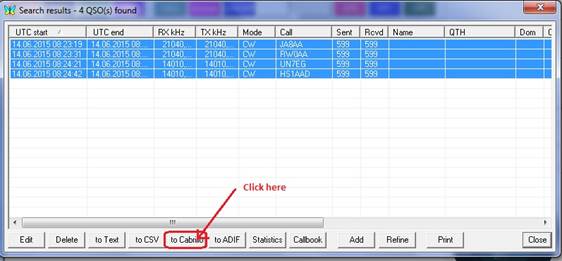

19.   Allocate all QSO and on press the button to Cabrillo

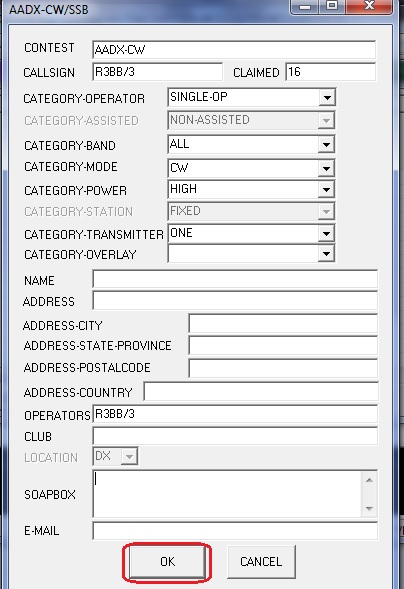

21. Fill the appeared form. In floor CATEGORY choose your class of work.. After filling a field press OK!



The file <yours call>.cbr for version 2.19 will be in root folder MixW.

For version 2.20 and you at installation will be by default



For Windows 7

C: \Users \ <User> \AppData \Roaming \MixW

For Windows XP

C: \Documents and Setting \ <User> \Application Data \MixW

22. For an output to press Close

For an output from a mode of competitions to press View-> Contest mode and double click to press on No contest

Yours faithfully Victor N. Kosobokov (R3BB) 73 !
